SIGVIEW supports data acquisition of analog voltage signals by using LabJack U3 and U6 (LV/HV) device types (www.labjack.com). For the support of T-series LabJack devices, see this chapter.


For general concepts and details regarding data acquisition in SIGVIEW, please see the Data acquisition overview. A standard LabJack "Universal driver" is used for data acquisition.

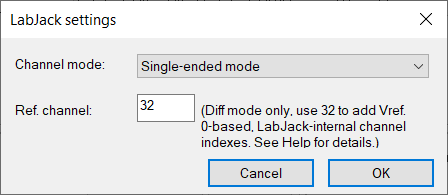

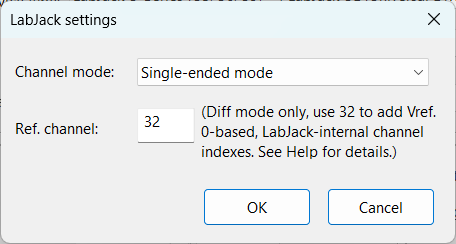

If you choose "LabJack" as a device type, you will be able to set some device-specific options in the following dialog:




For more information about settings, please see LabJack online help at: https://labjack.com/support/datasheets/u3/high-level-driver/


Channel mode: Single-ended or differential.


Ref. channel: Used only in differential mode, defines which channel is used as reference level (default is 32 = Vref/ground). These are internal channel indexes (0-based) which are not related to SIGVIEW channel indexes (1-based). See for example https://labjack.com/pages/support?doc=/datasheets/u3-datasheet/261-channel-numbers-u3-datasheet/ and other LabJack resources for details.
