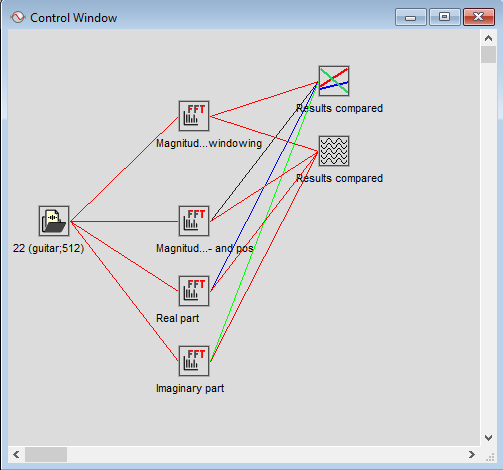

The Control Window provides a graphical overview of your current analysis scenario, and enables you to work easily with many signals or analysis windows at the same time. Each signal, analysis window, 3D graphic, or instrument created while working with SIGVIEW is represented with its icon in a Control Window.

Icons are connected with solid lines to show a signal flow through the system. A dotted line shows that signal link is not active and changes in the parent will not cause the child window to repaint.

Selecting in Control Window

You can select or unselect icons by clicking on them with the left mouse button. Every function you perform in the Control Window (for example FFT, Time-FFT, Extract from-to...) refers to selected icons, i.e. the windows they represent. For faster selecting or unselecting, click the right mouse button in the empty part of the Control Window and choose some of the selection options from the context menu (Select all, Unselect all, Invert selection...).

Also, you can select icons by dragging a selection rectangle with the mouse. If you hold a Ctrl key during mouse selection, you will unselect all icons inside the rectangle.

Operations on single windows

Click the right mouse button over an icon and a context menu will appear with the selection of available functions for the window it represents. If you choose one function from the menu, the result will be just as if you have chosen that option from the window itself.

Operations on multiple windows

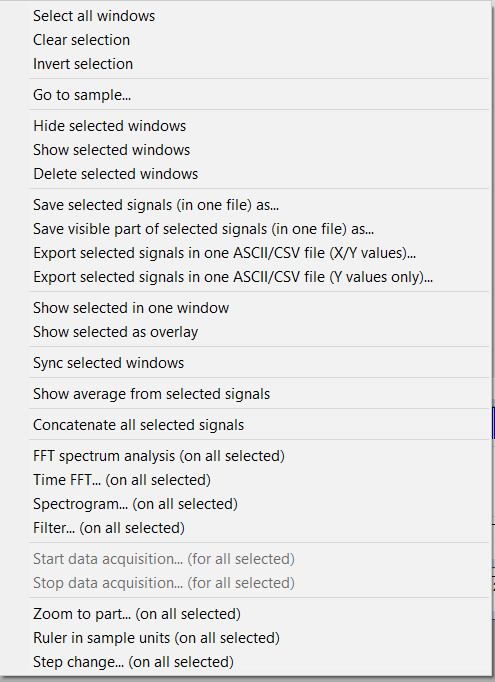

After you select any number of icons, you will be able to perform some of the available actions on all of them (if they all support the function). The fastest way to do so is to open a context menu in the empty part of the Control Window. It will show you the selection of applicable functions which can be performed on all currently selected windows.

Hiding/Showing/Deleting windows

Click the right mouse button over the empty part of the window and a context menu will appear with Hide and Show options. Choosing one of these options will hide or show all selected windows. Hidden windows will have an "H" letter near their icon in the Control Window. This can be helpful if you need some temporary windows in your analysis but you don’t want them to be visible in the display.

Deleting all selected windows can be performed by choosing "Delete selected windows" or by using "Del" key.

Overlay signals

If you select more than one icon in the Control Window, two additional options will appear in a context menu: “Show selected as overlay” and “Show selected in one window”. Both operations will create a new window where selected signals will be shown in the same coordinate system (as an overlay) or in separate coordinate systems in one window. For general information about this feature, see Overlays.

Playing multiple signals simultaneously

You can also use playback functions on multiple signals selected in the Control Window. This will allow you to play more signals at the same time and simulate multichannel data acquisition from multiple signal files. If your sound card supports that feature, you will be able to hear all playbacks at the same time (mixed).

Calculating average from two or more signals

There is also a special functionality of the Signal Averager window which can be used from the Control Window. To use it, select two or more signals in the Control Window and select the “Signal tools/Averager” context menu option. A new signal window will be created, representing the average value from all selected signals.

Concatenating multiple signals

To concatenate multiple signals into a new signal, you can select the "Concatenate all selected signals" context menu option. A new signal will be created, consisting of all selected signals concatenated in one signal. The sampling rate of the first signal will be used as a sampling rate of the new signal.
